Description

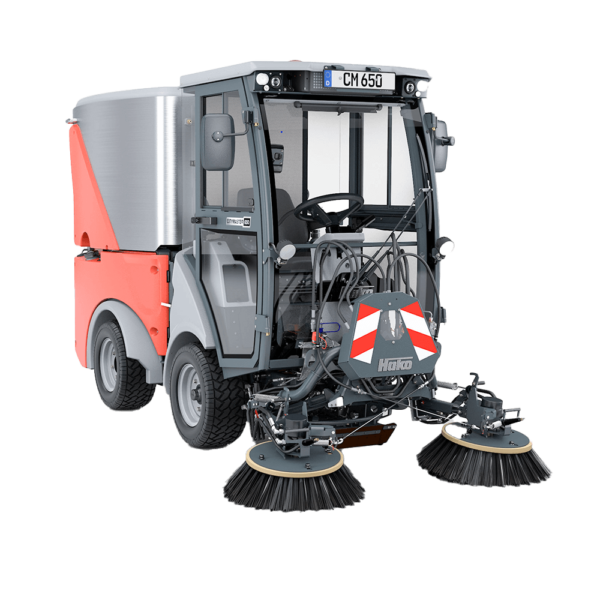

The Citymaster 650 is a powerful road sweeper designed to leave clean streets and outdoor areas spotless.
With its advanced technology and durable construction, this street sweeper sets new standards for the 2 t class with articulated steering, all-wheel drive and a fully-electronic control system. Equipped with a range of features to maximise efficiency and user comfort, this machine is the perfect choice for any municipality, contractor or facility manager looking for a reliable and efficient sweeper.
Compatible Attachments.
Attachments available:
Brush Deck, Snow Brush
Gritter, Brine Sprayer, Plough, Snow Brush
Deck Mower, Flail Mower
Technical Information.
Citymaster 650: Product Technical Information.
Reduces Fuel Consumption and Emissions
The Citymaster 650 meets the emission limit requirements of the Stage V Exhaust Emission Standard.
- Energy-saving drive control system.
- Three different performance levels.
- Reduced fuel consumption both in work mode and during road travel.
Versatile implement carrier and professional sweeper all in one
Thanks to four attachment interfaces allowing the combined use of different attachments and superstructures, the machine can carry out a wide range of additional tasks: for example winter service, green area maintenance or wet cleaning tasks. You only need one machine instead of several special vehicles – which is both more efficient and economical.
| Engine and Drive | |
| Engine | • Water-cooled 3-cylinder industrial Diesel engine with 1,642cc • DOC and DPF, output 25.5kW at 2,630rpm • Common-rail direct fuel injection, tank capacity 41litres • Engine stays below the limit values according to the Emission Standard 2016 / 1628 /EC Stage V |
| Approval | • EU type approval for the basic unit as a tractor T2a (LoF) (agricultural and forestry machine) |
| Ground drive | • Traction- and energy-efficiency-optimised hydro-static ground drive with permanent all-wheel drive • Drive control system with automatic load control in transport mode • 3-stage fixed speed in work-travel mode (1,900 rpm [ECO] – 2,250rpm [Standard] – 2,630rpm [MAX]) |
| Hydraulics | • High pressure hydraulics with variable output distribution for rotary consumers • Circuit 1 (front) 27 / 31 / 37 I/min @ 195 bar • Circuit 2 (rear) 21 / 25 / 29 I/min @ 195 bar • 1 hydraulic circuit at the front, 1 hydraulic circuit at the rear |
| Driving and Working Characteristics | |
| Speed | • Automotive driving speed 0–25km/h • Hydro-static work-travel speed 0–25km/h • Reversing 0–12km/h |
| Steering and chassis | • Hydraulically steered, articulated 4-wheel chassis; steering angle 53° • Robust articulated joint with integrated pendulum compensation and roll stability control system |
| Brake | • Hydro-static brake acting on all four wheels, service brake at the rear • Mechanical parking brake acting on the rear wheels |
| Tyres | • 270/50-12 comfort tyres • 23 x 10.50-12 lawn tyres • 23 x 8.50-12 standard tyres |
| Cabin | • 1-seater comfort cabin with comfort driver’s seat and operating panel integrated in the armrest • Central display shows all machine functions, adjustable steering column • Hot-water heating and optional air conditioning • Frame doors with sliding windows • Foldable wing mirrors, adjustable from inside the cabin |
| Dimensions (H/W/L) | Basic unit: 1,970mm x 1,210 x 3,830mm (standard tyres, without tow bar) Sweeper: 1,970mm x 1,210 x 4,510/5,170mm (standard tyres 2B/3B) |
| Load Data | |
| Empty weight | 1,430kg (implement carrier), 1,780kg (sweeper) |
| Permissible values | Total weight 2,200kg, axle load 1,200/1,500kg (front/rear) |
| Dimensions | |
| H/W/L | Basic unit: see brochure Sweeper: 1,980 x 1,090 x 3,900mm (standard tyres 2B) |
| Wheelbase | 1,270mm |
| Track width | 866mm |
| Inner turning radius | 1,390mm |
